The designing and fabrication of the MANX Bodywork


Cutting & preparing the original Monster fuel tank

for use the down side

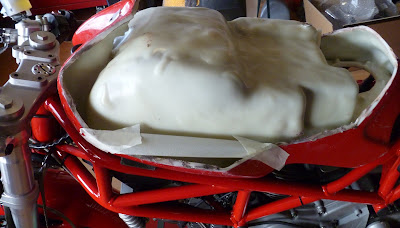

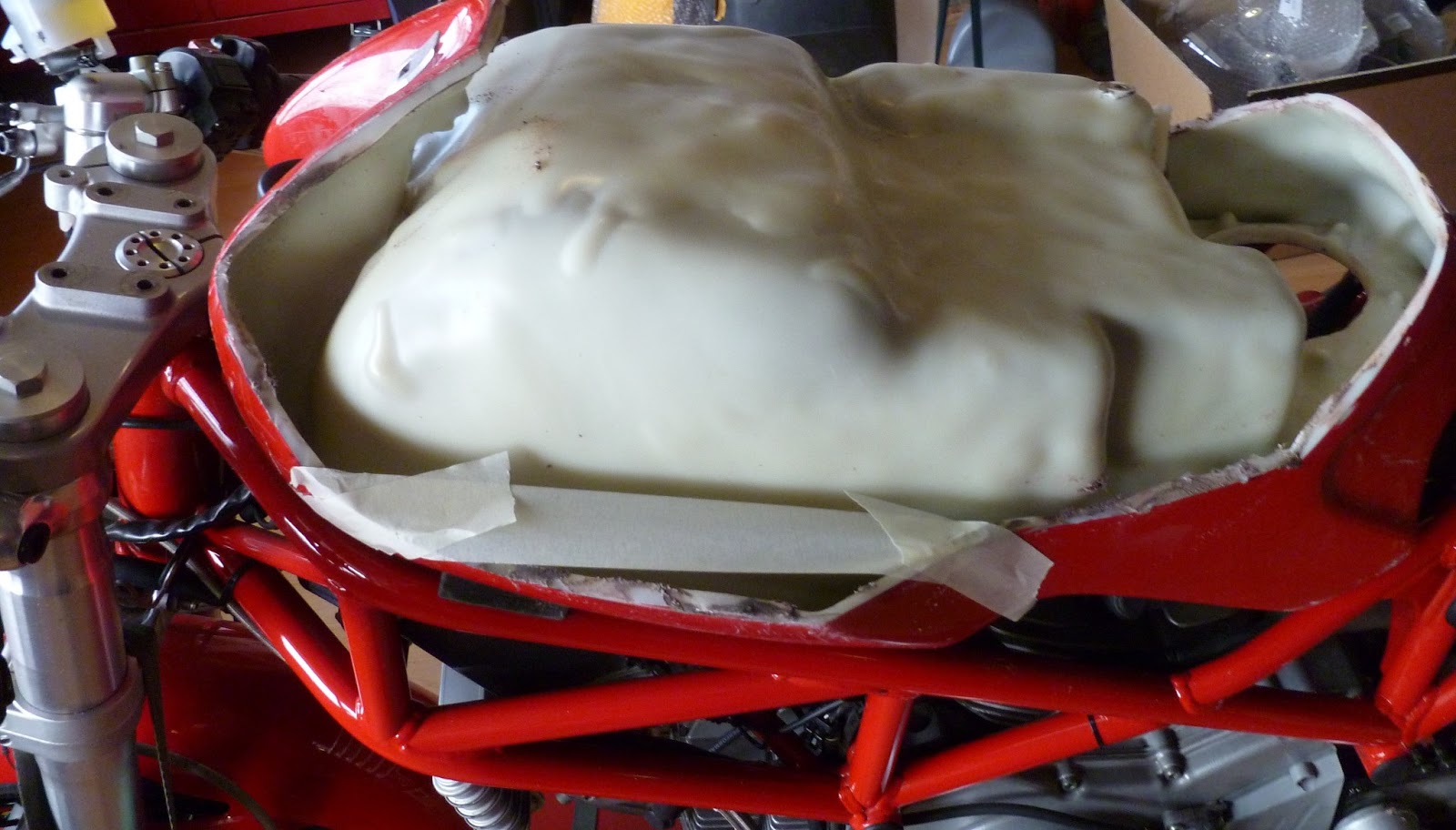

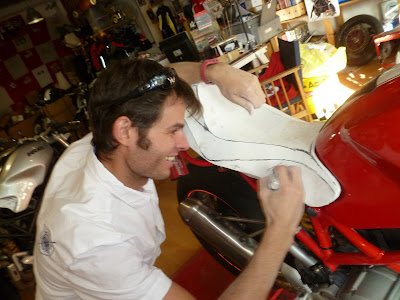

Making the base more big

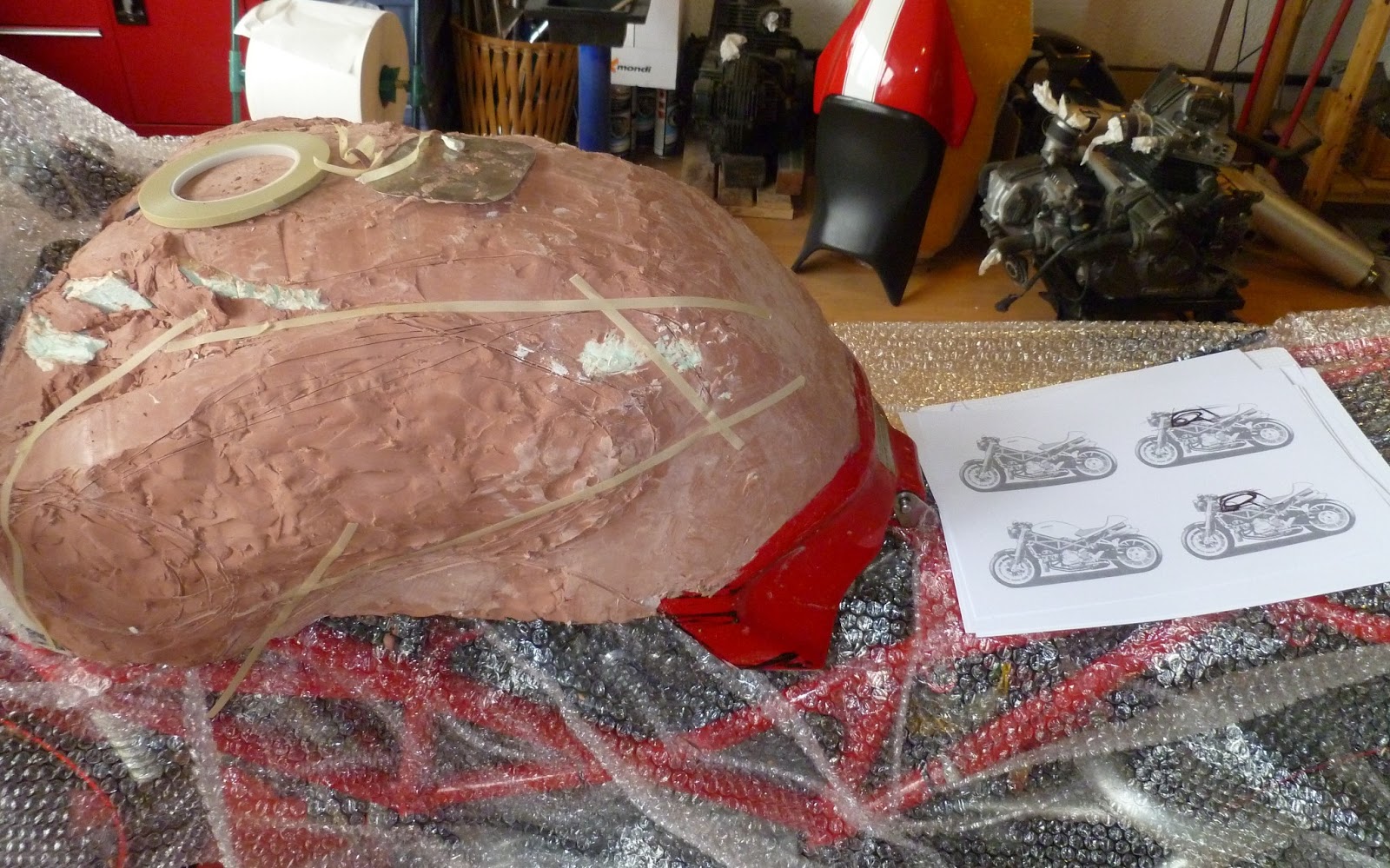

Putting the clay and making the first design lines


Modeling


   Fuel tank clay finish


 Putting clay for the solo seat


Finish the Solo seat clay model


The clay process is finish


The first glass fiber master


Corrected and painting of the first master for make the definitive mould


The first MANX fiber glass parts !!



The First MANX bike ready to run


 CARLOS BELTRAN  The designer and modeler of MANX

Inspiration MHR‏

900SS IE  MHR


MIKE HAILWOOD’S  TT 900 SS


domingo, 14 de abril de 2013

STREET EVO by Ruben from Uruguay‏





STREET EVO by Ruben  from Uruguay
Ruben from Uruguay “radicalize” his S2R 1000
RAD 02  fuel tank, RAD 02 CORSA EVO solo seat …..
and much more RAD parts !

lunes, 8 de abril de 2013

SILVER SHOTGUN (2013)

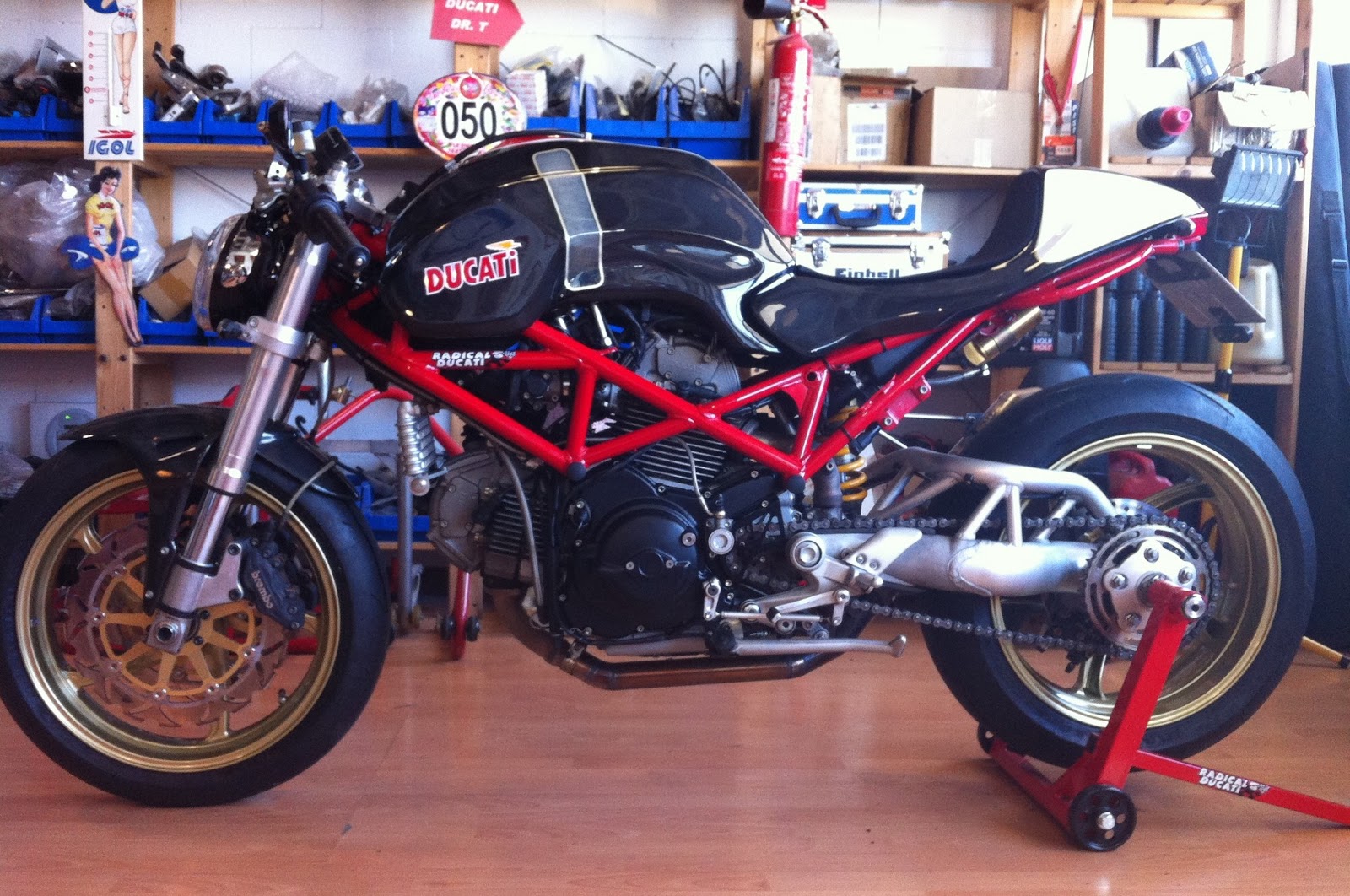

SILVER SHOTGUN (2013)
Technical Schedule
- Donor bike : S2R 1000’06
- RAD 02 K service front fork
- Discacciati rotors
- Discacciati radial calipers
- Discacciati Pr20 radial brake pump
- Discacciati radal clutch pump
- Frentubo brake lines
- BST carbón fiber front Wheel
- SP ergal cnc machined triple clamps yokes
- RAD carbon fiber front mudguard
- Aviacomposiuti EVo dashboard
- Tango fron light
- CNC Racing light clamps
- K service aluminium clip ons
- Rizoma mirror
- RAD MANX fiberglass fuel tank with quick open ergal gas cap
- RAD MANX fiberglass solo seat
- Artenruta metal flake painting
- Tuned engine : ported heads, blue printed , lightflywheel, EVR 48T aluminium clutch kit, CNC racing clutch pressure plate, EVR slave piston, EVR cutted clutch cover, Speedy belt covers.
- MHE oil radiator
- MWR HE air filter
- EVR3 ecu and Castro Maroto mapping
- NGK racing spark plugs
- SPARK catalizator suppressor
- RAD “tail fish” megaphone
- CNC Racing ergal footrests
- EVR ergal pinion cover
- Extremem Tech rear schock ( TECH 2)
- RAD carbon fiber rear mudguard
- RAD carbon race chain protector
- BST rear carbon fiber wheel
- TSS dismountable ergal sprocket carrier
- TSS aluminium rear sprocket
- Tsubaki gold chain
- Braking lobed 916 rotor
- Original S2R frame
- S2R rear light
