martes, 18 de junio de 2013

F3 by Radical Ducati (2013)

 F3 (2013)

- Donor Bike : Ducati 125 TS (1963)
- Modified frame for conversión to cantiléver  rear suspensión system
- New subframe
- Derbi GPR 50 upside down  front fork
- Modified  Derbi  GPR yokes
- Radial AJP caliper
- Ducati 900 SS brake pump
- Rizoma “next” brake fluid tank.
- Frentubo brake line
- NG 320 mm diameter rotor

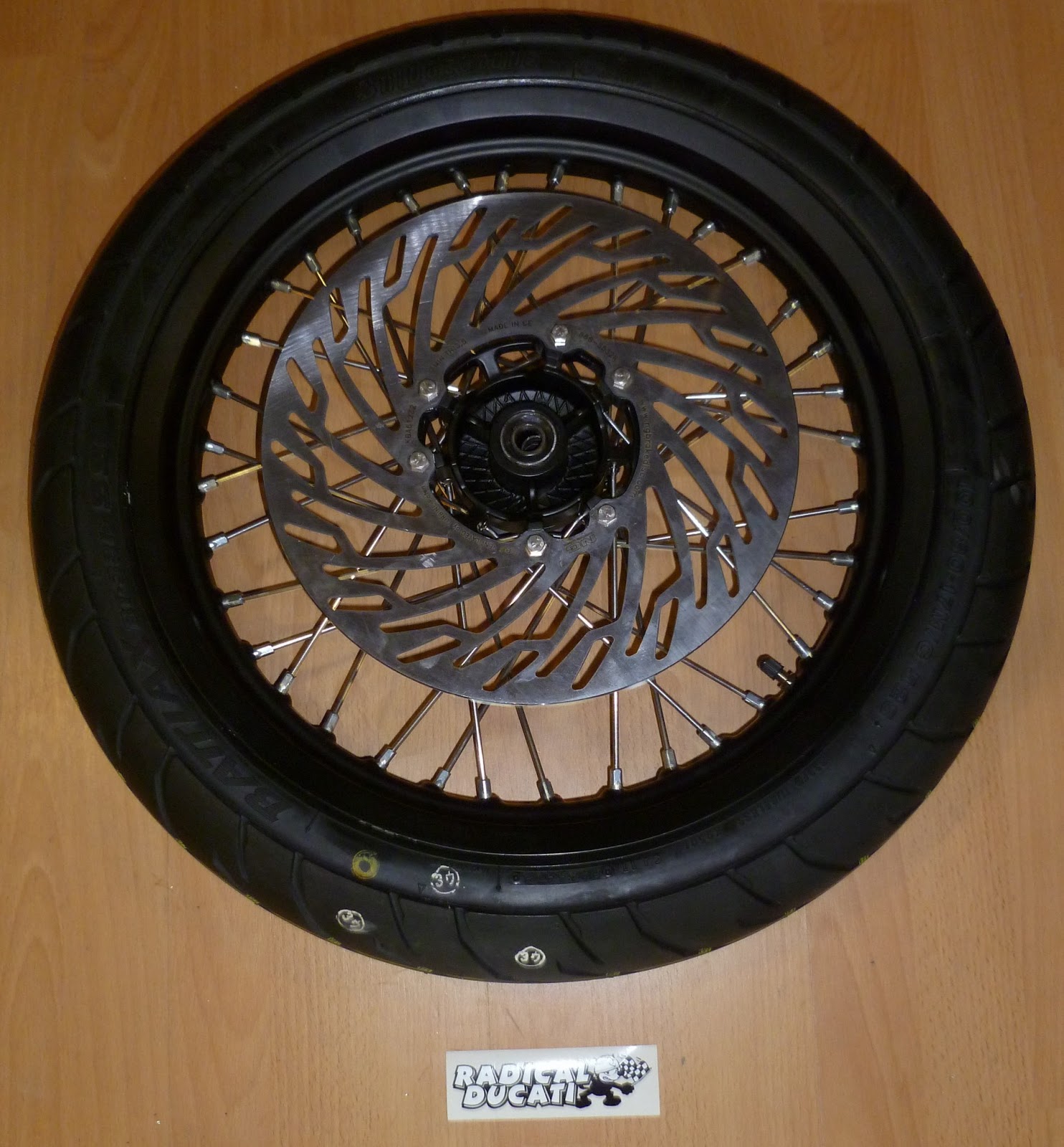

- Front wheel : Derbi Supermotard Hub + Morad  Alluminium  rim
- Veglia “cara blanca” rev counter
- RAD number platye
- RAD  Front number plate  suport
- Suzuki GSXR 750’06 clutch lever
- RAD  regulables and foldables levers
- Derbi GPR clip ons
- Domino fast gas throttle commando
- Ducati 160 Sport fuel tank
- Modified RAD 02 F3  Carbon fiber solo seat
- Ducati 250 short stroke engine : ported heads , hi comp piston, lightened crankshaft , No alternator ,       Straight cut gaer pinions lightened,  Metalic  outside oil lines, Race camshsts, big valves, Dual spark.
- Amal 32 mm carburetor
- MWR air pod
- CBR 600 coil
- RAM Italia Lipo battery
- SUPERMARIO  exhaust system and megaphone
- RAD carbon fiber exhaust shield
- Betor  rear schock
- Derbi  GPR 50  aluminum swingarm
- Ducati 250 rear hub with drum brake + Morad alluminium rim
- Bridgestone Race tyres
- Tsubaki chain
- CNC Racing Monster  S2R regulables footpegs + Rizoma  carbon fiber helguards
- Rizoma  reverse gear lever.


PICTURES by DEL PERRO



















domingo, 9 de junio de 2013

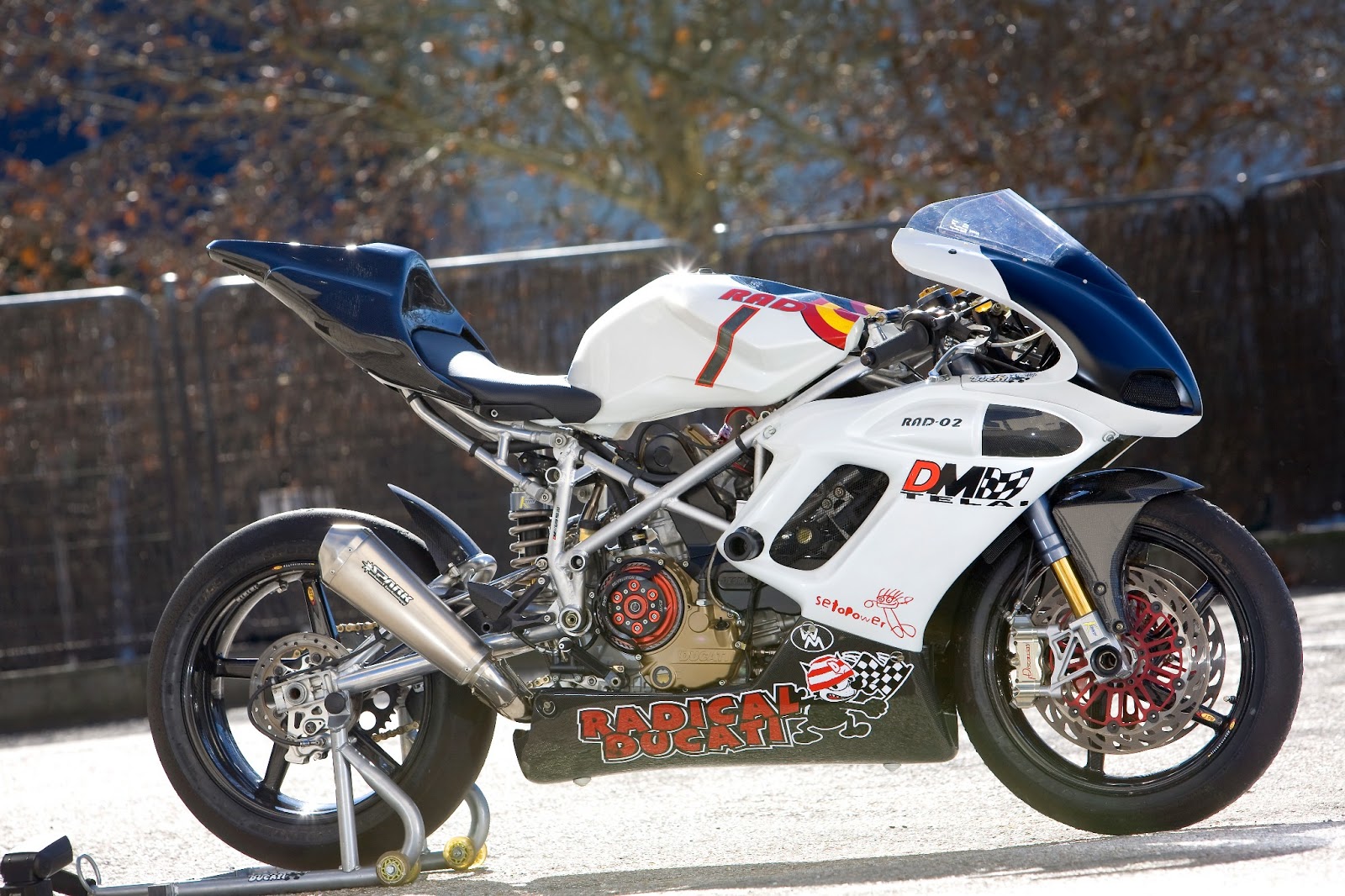

RAD02 Factory’10

RAD02  Factory’10
- RAD02 Alluminium frame
- RAD02 Montjuich alluminium rear frame
- RAD02 Alluminium front bracket
- RAD02 Ergal rear suspension height rod
- RAD02 Alluminium swingarm
- RAD02 Ergal cnc machined triple bridge yokes
- SP Footrest
- K SERVICE Fork
- K SERVICE Rear schock
- K SERVICE Stearing damper
- EVR 3 ecu and special mapping
- RAD Racing wiring
- Aviacompositi dashboard
- Lipo Battery 5 amp
- Ducati ST3 engine. Ported heads , Lightened crankshaft, Carillo rods , 996 modified pistons, big valves, Llight alloy flywheel, EVR antihoping clutch .
- No airbox , special MWR air filter
- FEBUR SBK water radiator
- WOLFMAN 2 in 1 exhaust system with SPARK megaphone
- DISCACCIATI Radial clutch and brake pumps
- DISCACCIATI front rotors
- DISCACCIATI front radial calipers
- DISCACCIATI 200 mm rear rotor + caliper
- BST Carbon fiber wheels
- RAD02 Carbonfiber fuel tank
- RAD02 Carbonfiber CORSA front fairing
- RAD02 Carbonfiber CORSA solo seat
- RAD02 Carbonfiber CORSA  undertray seat.
- RAD Carbon fiber front and rear mudguard
- Weight : 140 kg wet ( with battery,water,oil and 2 litters of fuel)
- Power : 115 hp at rear wheel , measured in a Softengine  braked wheel dyno .
Pictures : Javier Fuentes







martes, 4 de junio de 2013

From Taiwan Igor presents RADMANIAQUE !

From Taiwan  Igor presents RADMANIAQUE
A “radicallized “ 749R
Technical Specs:
  • Ducati 749R
  • Montjuich front fairing
  • Montjuich front bracket
  • RAD fuel tank
  • Montjuich seat fairing
  • Montjuich seat bracket
  • STM Evoluzione slipper clutch
  • IMA top and low triples
  • GBRacing engine covers
  • Brembo break and clutch levers
  • Aviacompositi carbon parts
  • Nemesis ECU
  • WMRacing race switches
  • Ballistic LiPol 8-cell battery
The RAD_MANIAQUE is French word, it means "maníaco", "maniac" and we named our 749R because of our mania (obsession) for RadicalDucati design and creations.
